01
Display & Touch
- LCD: 15.6" TFT LCD
Resolution: 1920 x 1080Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
02
I/O Expansion
- Serial Port 2, DB9 x 1 + RJ50 x 1 (5V/12V support on all COM ports)
- Parallel Port N/A
- Standard USB Port 5, USB 3.0 x 2 + USB 2.0 x 3
- Powered USB Port N/A
- OTG USB N/A
- LAN Port 10/100/1000 Mb x 2
- Display Port 1. Proprietary connector x1 for 2nd display
2. USB Type-C x 1CR Port 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
- PS/2 Port N/A
- UPS Port N/A
- Audio Internal 2W speaker x 1
- Expansion Slot M.2 2230 x1 for Wi-Fi/BT
03
Physical Dimension
Dimension (W x D x H in mm)376 x 206 x 304
Weight (N. W. in kg)4.5
04
Environmental
Operating Condition0°C - 40°C, 20%RH - 90%RH
Storage Condition-20°C - 70°C, 10%RH - 90%RH
05
Environmental
- Wi-Fi: M.2 WiFi/BT module
- Camera: 1MP wide angle camera
- MSR N/A
- AG Glass Cannot coexist with built-in camera
06
Attachment Options
- POS Monitor PCAP touch TFT LCD: 10.1"
- Line Display: N/A
- External UPS Pack For RT Series N/A
- Attachment options MSR; 2D Scanner; RFID; Fingerprint Sensor

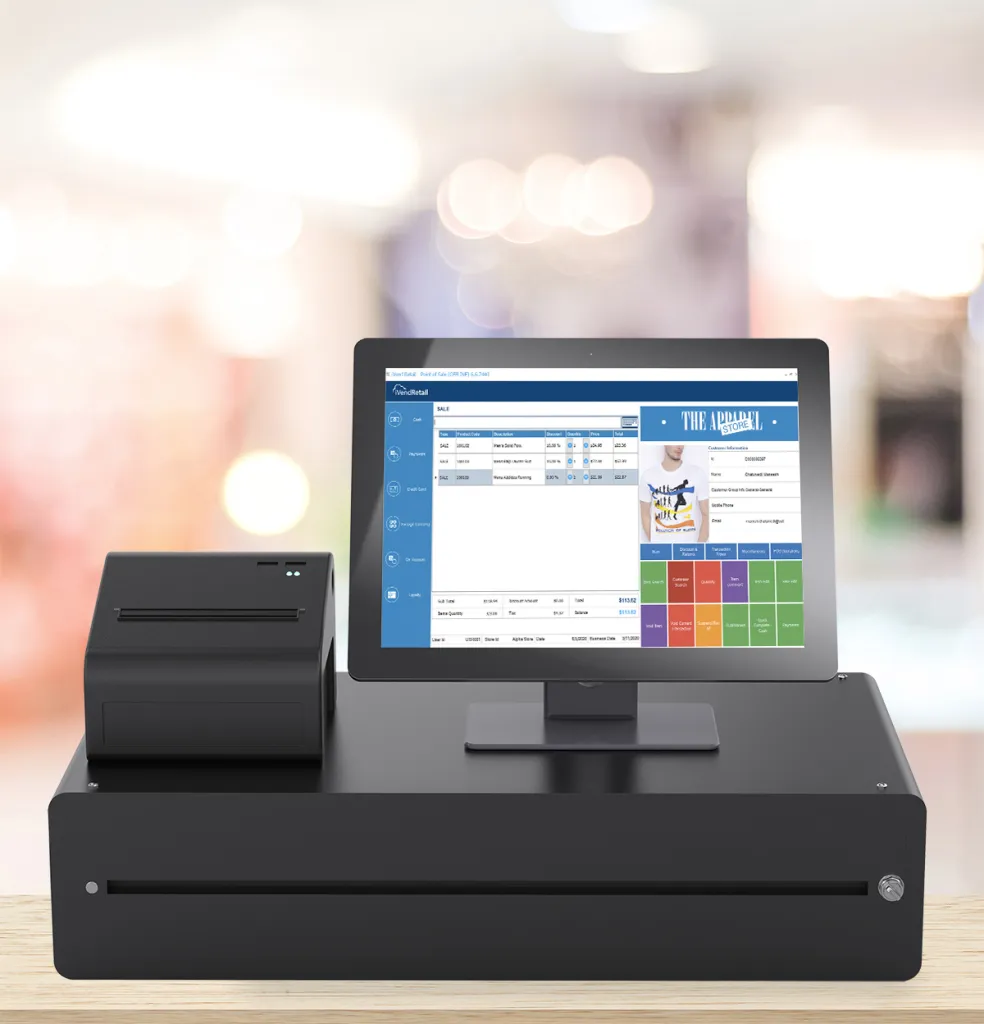

- Advantages of POS Machine
The clamshell designThe POS Machine features a clamshell design allowing easy access to the internal components for fast maintenance. It adopts a screw-less and a whole modular design, allowing the hood-like monitor case to be quickly opened with just one touch, which is convenient for repair, replacement and even upgrade.
ProtectionBenefiting from its best of class protection, Haydn ZT Series is rugged and durable to withstand harsh environments, offers protection from water and dust damage so as to extend the longevity of your investment.
Security and Clean Cable ManagementThe hidden I/O, hidden power adapters and three-way advanced cable management design delivers a truly clutter-free station, further prevents unauthorized access to the I/O ports and protects power source and connectivity from interruptions, making operations more secured.
Secured USB PortThe USB port lock design prevents unauthorized data transfer and reduces computer virus infection to keep your data secure and customers safe.
